Quick Start

Introduction on how to establish a serving-end for direct control of Colorlight’s players.

1. The message body of the interaction between the server and the device is the command; The interaction can be realized by sending commands via interfaces;
2. The normal terminal connection can be realized with a few interfaces; further functions can be developed based on those interfaces;
3. All requests of the device are with basic authentication, which is ignored in this document but can be processed in batch if necessary;
4. There are 2 types of protocols for the interaction between the device and the server, namely, http and websocket;

• Http: The device receives command as scheduled (there could be a short time difference between command transmission and implementation), without the need for a long connection;
• Websocket: The server should keep a long connection with the device, which will send heartbeat regularly; the server should give a timely response to the heartbeat and send corresponding commands.

The contents of http and websocket are the same but in slightly different structure.

Player Working Method

Connect Player to Server

1. Server establishes relevant interfaces;
2. Configure the link to the device.

Connect the host computer to the device and then access the configuration page.

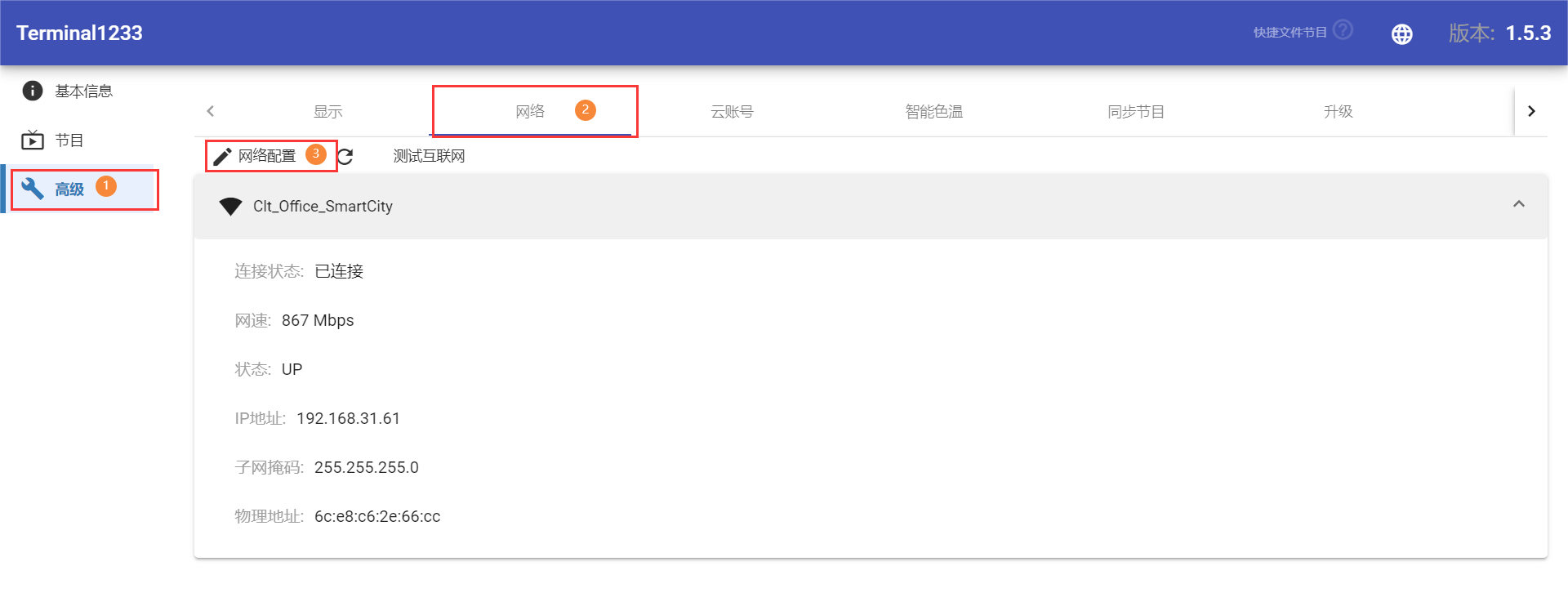

Network & internet: Advanced network settings > Advanced, then select the desired connection for network settings.

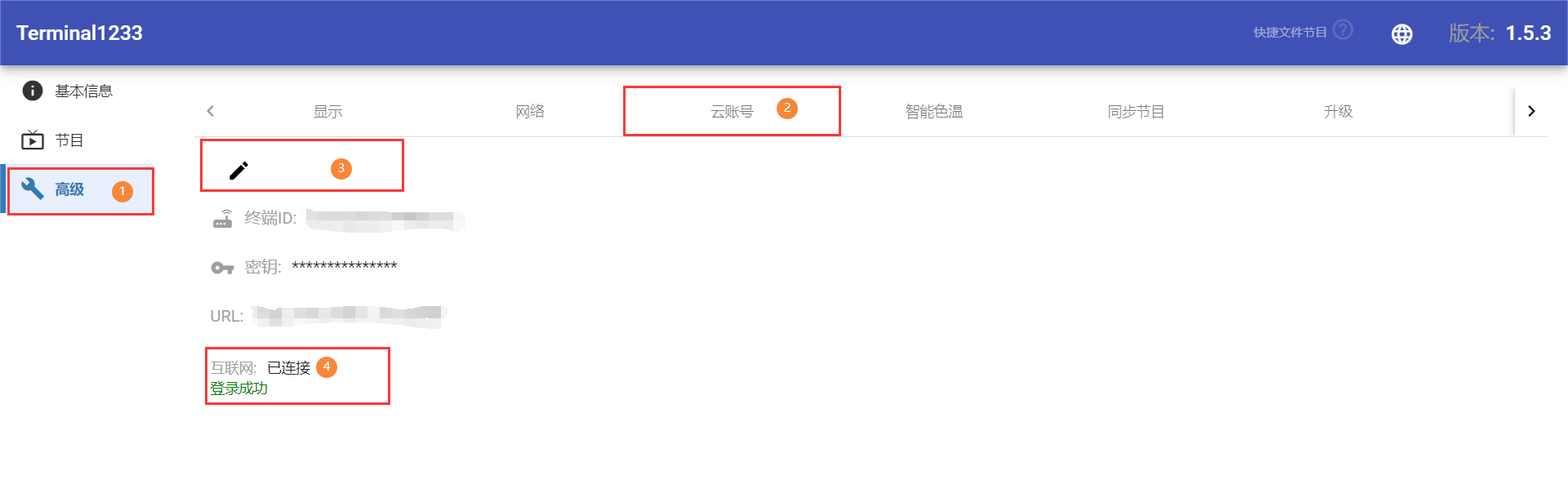

     Configure the connection: ensure the server and the device share the same network segment, then access Advanced > Cloud Account > Modify

     You will see Internet: Connected in the interface once the connection is successful.

Interaction Method Between Player and Server

1. Obtain commands via http polling, with an interval of 5 seconds (5 minutes for ws connection).

2. The server send message to the device via webscoket.
