Detect Receiving Card

Path:

/api/smart_read_serial_info

Method: GET

Content-type: application/json; charset=utf-8

API Description: This can be used to detect the receiving card information, including number, model, and version.

Request

Name	Type	Example	Description
portIndex	byte	256	Port number. 256: Detect all ports.
intent	String	scanReceiverCard	Detect the receiving card.

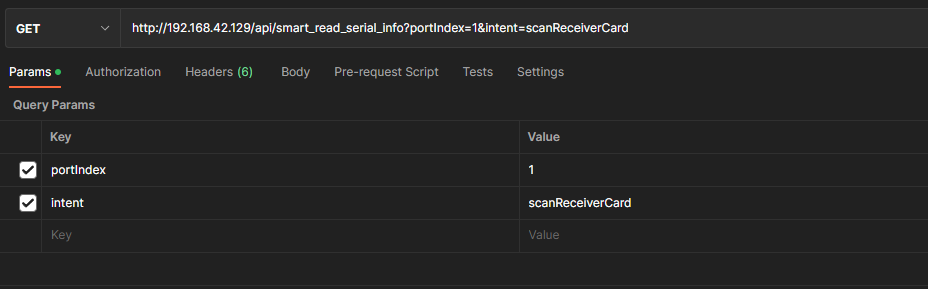

Request Example

Response

Name	Type	Example	Description
cltIndex	int	1	Receiving card no.+1 (start from 1).
errorRate	double	0.0	Error rate.
humidity	int	-1	Humidity.
productCode	String	"11.30"	Version.
productType	String	"i9x"	Product name.
runTime	long	842333	Running time.
temperature	double	0.0	Temperature.
voltage	int	0	Voltage.

Response Example

• Success:

{
    "portNumber": 1,
    "receiveCard": [
        {
            "cltIndex": 1,
            "errorRate": 0.0,
            "humidity": -1,
            "productCode": "11.30",
            "productType": "i9x",
            "runTime": 842333,
            "temperature": 0.0,
            "voltage": 0
        },
        {
            "cltIndex": 2,
            "errorRate": 0.0,
            "humidity": -1,
            "productCode": "11.30",
            "productType": "i9x",
            "runTime": 842288,
            "temperature": 0.0,
            "voltage": 0
        }
    ]
}

• Failure:

{"portNumber": 1}
