Upgrade Receiving Card

Path:

/api/rcv_update

Method: POST

Content-type: application/json; charset=utf-8

API Description: This can be used to upgrade receiving card programs. Upgrade file body should be updated through form-data. If files are not to be upgraded, use raw instead (internal file of the player). Save the upgrade file to /mnt/sdcard/Android/data/com.color.home/files/RCV_UPDATE).

Request

Name	Type	Example	Description
limitType	byte	true	True by default. true: Limit generation of model; false: Do not limit generation of model.

Upgrade Description File:

Name	Type	Example	Description
name	string	"xx.hex"	Name of the upgrade file.
portIndexes	List	-	Information of the port to be upgraded.

portIndexInfo

Name	Type	Example	Description
portIndex	byte	0	Port number of the receiving card.
rcvIndexes	List	[0,1,2]	Number array of the receiving card to be upgraded, starting from 0.

Example of the description file to be upgraded (the file name must be update.json)

{
	"name": "xxx.hex",
	"portIndexes": [{
		"portIndex": 1,
		"rcvIndexes": [1, 2]
	}, {
		"portIndex": 2,
		"rcvIndexes": [0, 2]
	}]
}

Request Example

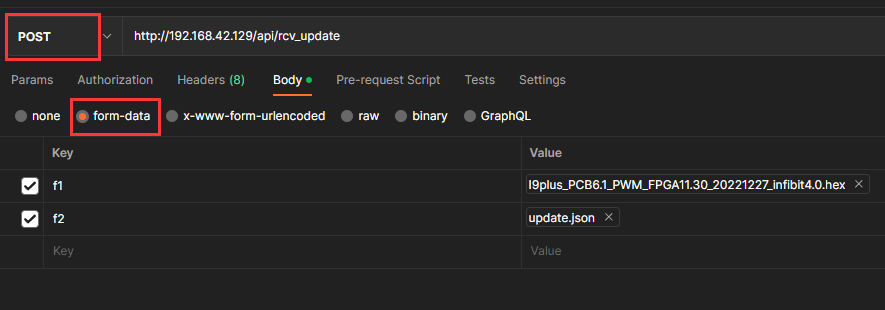

(1) form-data Method

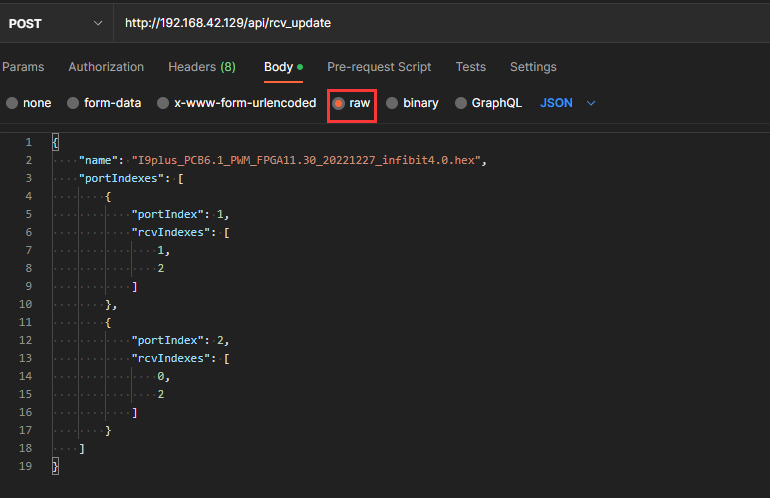

(2) raw Method

Response

Name	Type	Example	Description
errorCode	int	0	Error code.
apiErrorCode	int	0	sdk
portIndexes	List	-	Upgrade result array. If errorCode or apiErrorCode is not 0, portIndexes is empty.

PortUpdateInfo

Name	Type	Example	Description
portIndex	int	0	Port number, starting from 0.
rcvIndexes	List	-	Upgrade result array of the receiving card via the port.

rcvUpdateInfo

Name	Type	Example	Description
rcvIndex	int	0	Receiving card number
errorCode	int	0	Error code.

Response Example

{
	"errorCode": 0,
	"apiErrorCode": 0,
	"portIndexes": [{
		"portIndex": 0,
		"rcvIndexes": [{
			"rcvIndex": 0,
			"errorCode": 0
		}, {
			"rcvIndex": 1,
			"errorCode": 0
		}]
	}, {
		"portIndex": 1,
		"rcvIndexes": [{
			"rcvIndex": 0,
			"errorCode": 0
		}, {
			"rcvIndex": 1,
			"errorCode": 0
		}]
	}]
}

Notes:
●The name of the upgrade description file must be update.json.
●The parameter name in the description file must match the name of the uploaded file.
●The port number in the upgrade description file and that of the receiving card via the port cannot be duplicated.
